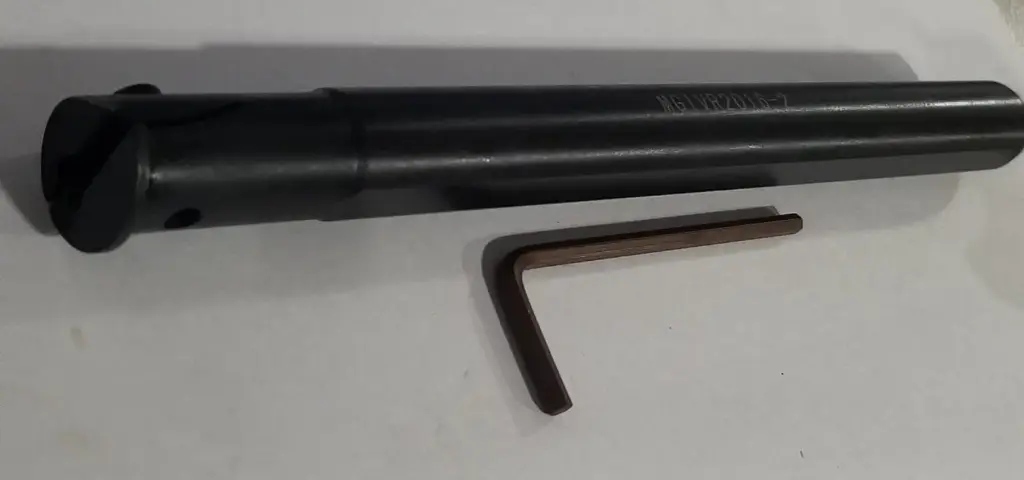

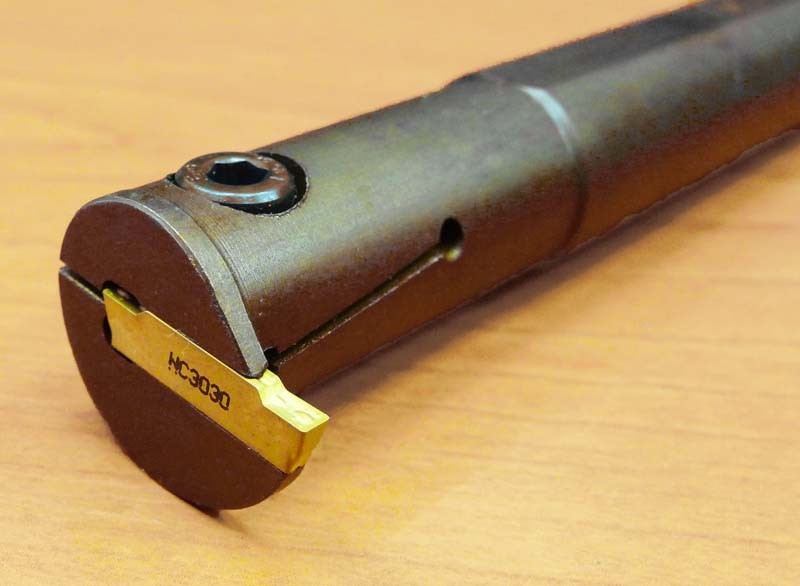

The MGIVR2520-2 is an internal grooving and turning tool holder (boring bar) used for precision machining on a lathe or CNC machine.
Key Specifications
- Usage: Internal grooving, parting, and boring operations.
- Orientation: Right-hand turning tool (indicated by the "R" in the model name).
- Shank Diameter: 20mm diameter bar.
- Groove Width: Designed for a 2mm wide groove (indicated by the final "2" in the model name).
- Minimum Bore Diameter: Suitable for internal processing in bores with a minimum diameter of 25mm.
- Compatible Inserts: It is compatible with MGMN200, MGGN200, and sometimes MRMN200 carbide inserts, which must be purchased separately.
- Material: Typically crafted from robust alloy or tool steel for durability and stability during heavy-duty operations.
