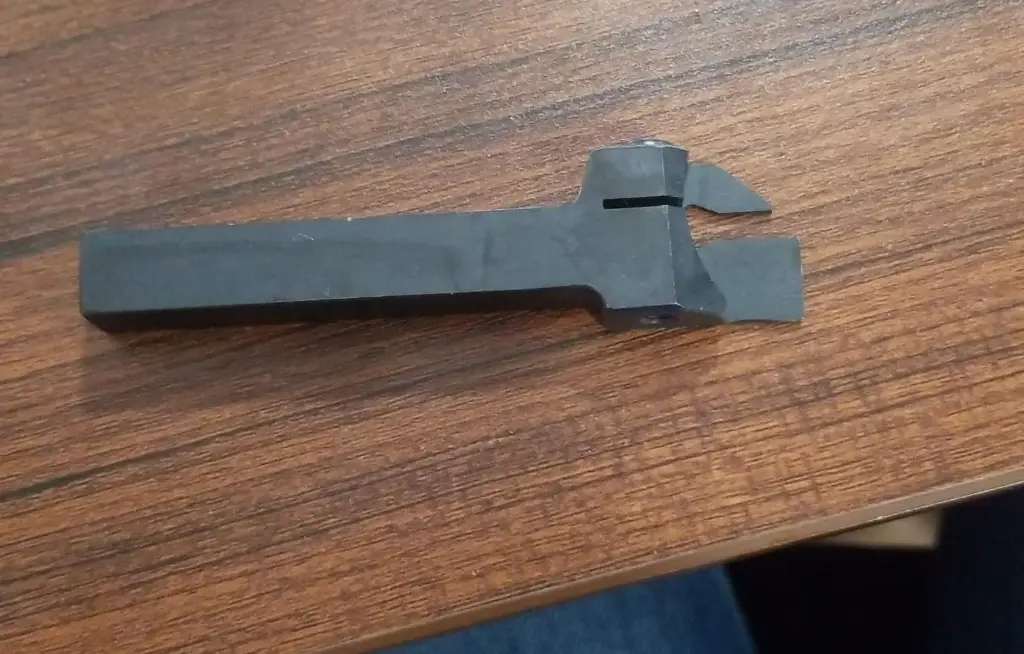

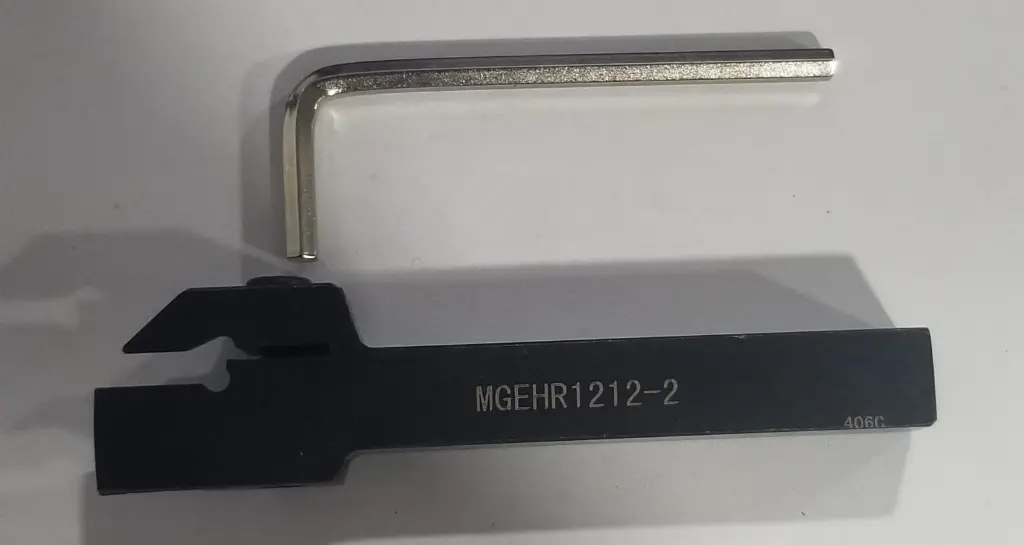

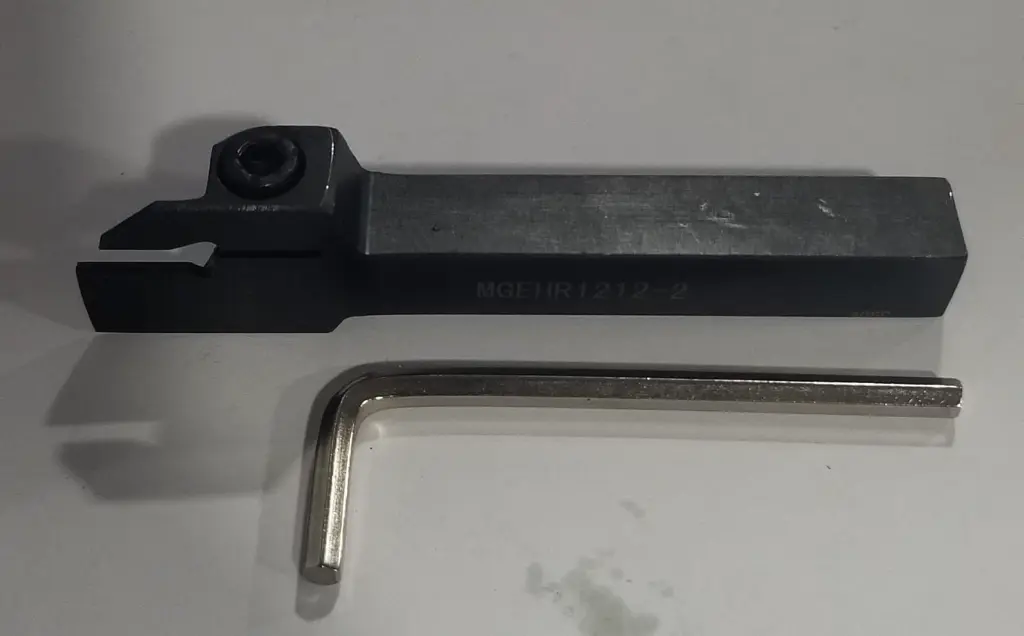

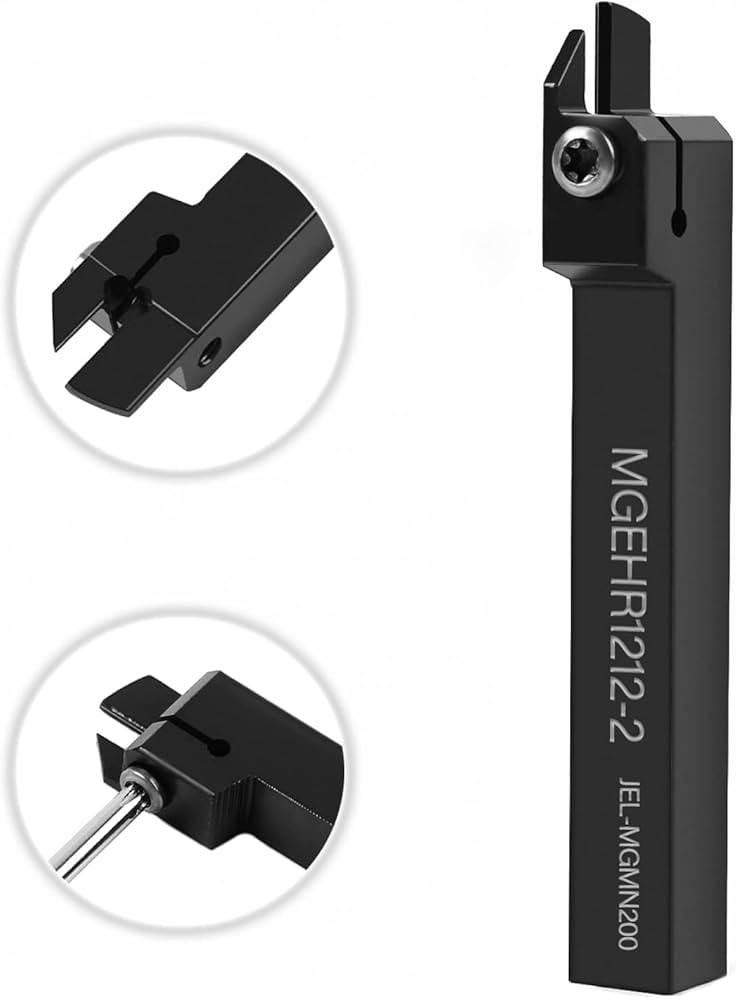

MGEHR1212-2 durable external grooving and parting tool holder designed for lathe machines. It is widely used in metalworking and is compatible with standard MGMN200 carbide inserts
Key Features
- Function: Primarily used for external grooving, parting (cut-off), semi-finishing, and finishing operations on various materials including steel, stainless steel, cast iron, copper, and aluminum.
- Material and Durability: Constructed from high-quality alloy steel (often 40Cr steel), providing high grip strength, impact resistance, and a long service life.

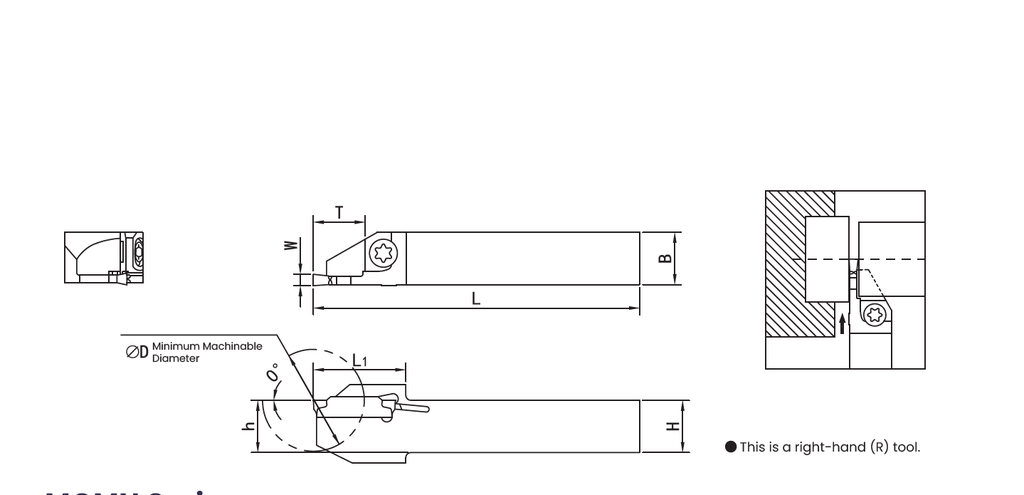

Specifications:

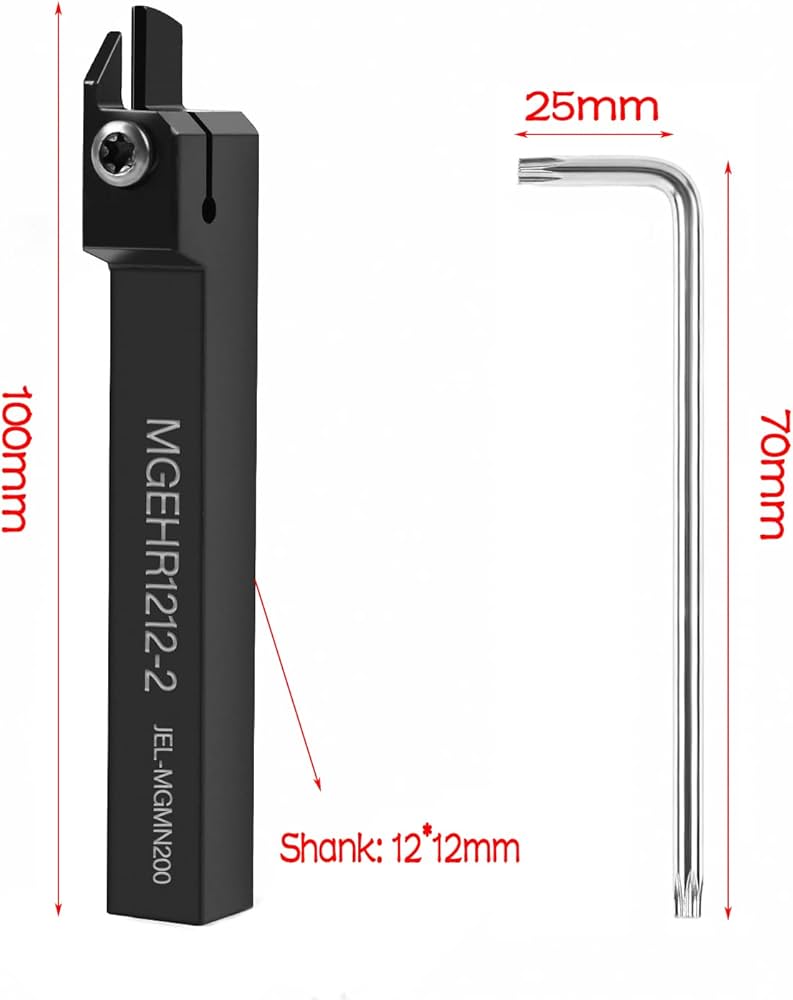

- Model: MGEHR1212-2
- Shank Size: 12 mm x 12 mm square shank
- Overall Length: Approximately 100 mm (3.94 inches)
- Grooving Width: Accepts 2 mm wide inserts
- Cutting Direction: Right-hand orientation
- Compatibility: Designed to accept MGMN200-G carbide inserts.
