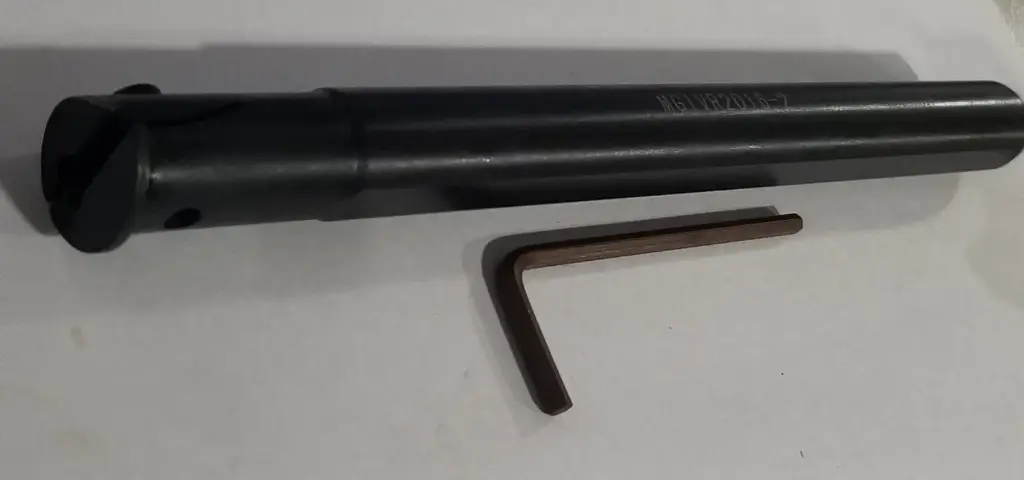

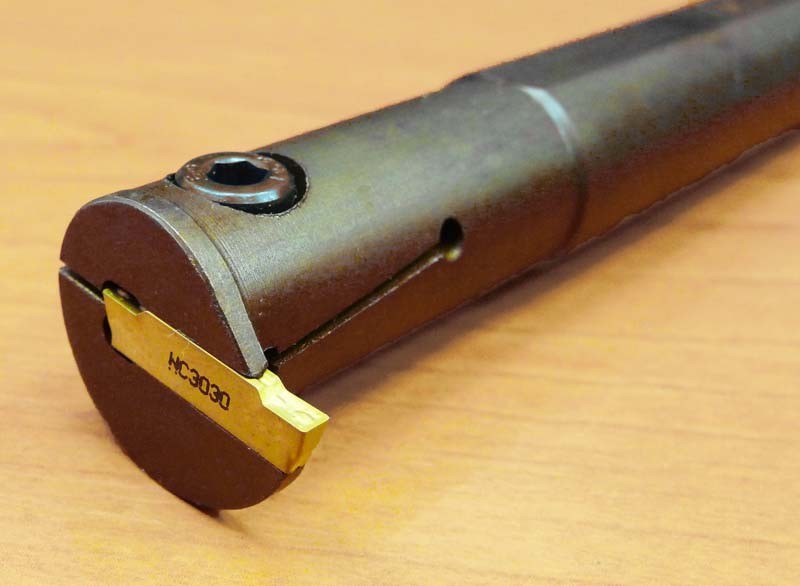

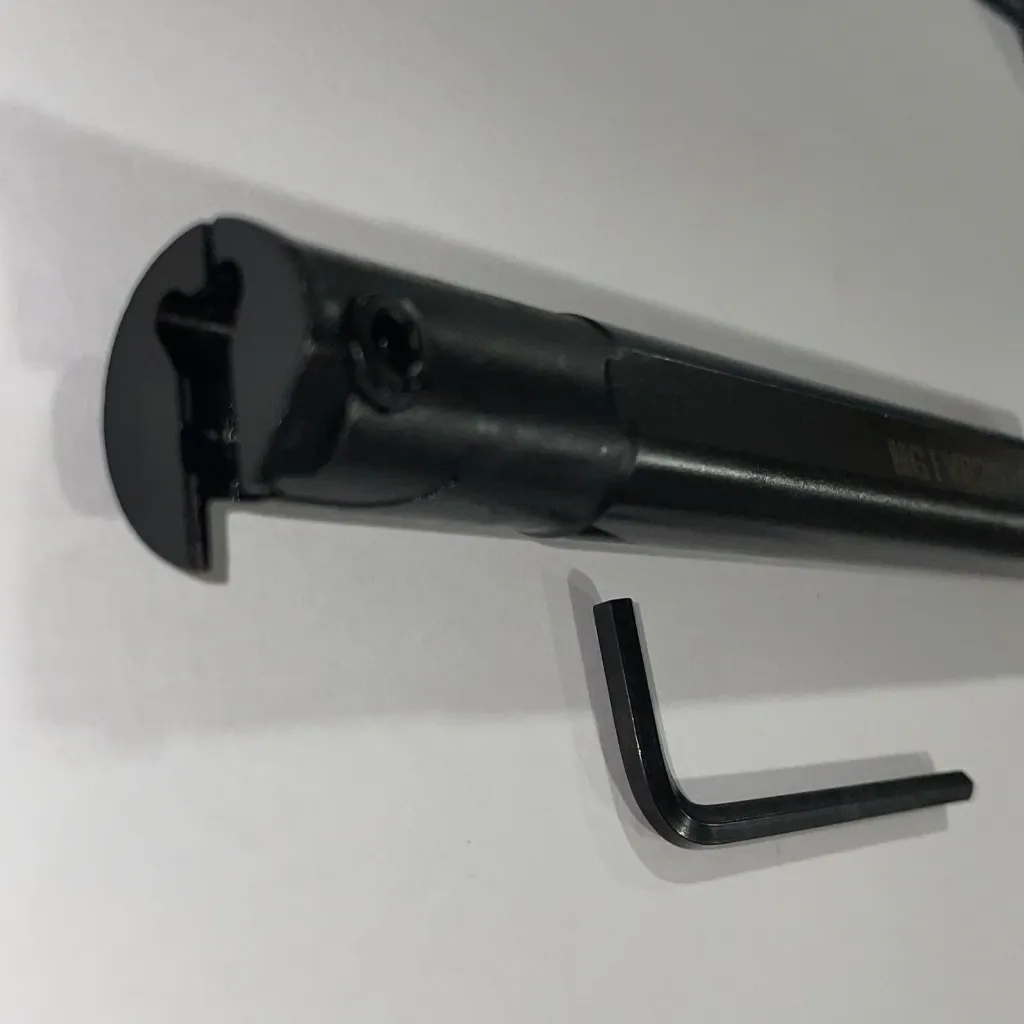

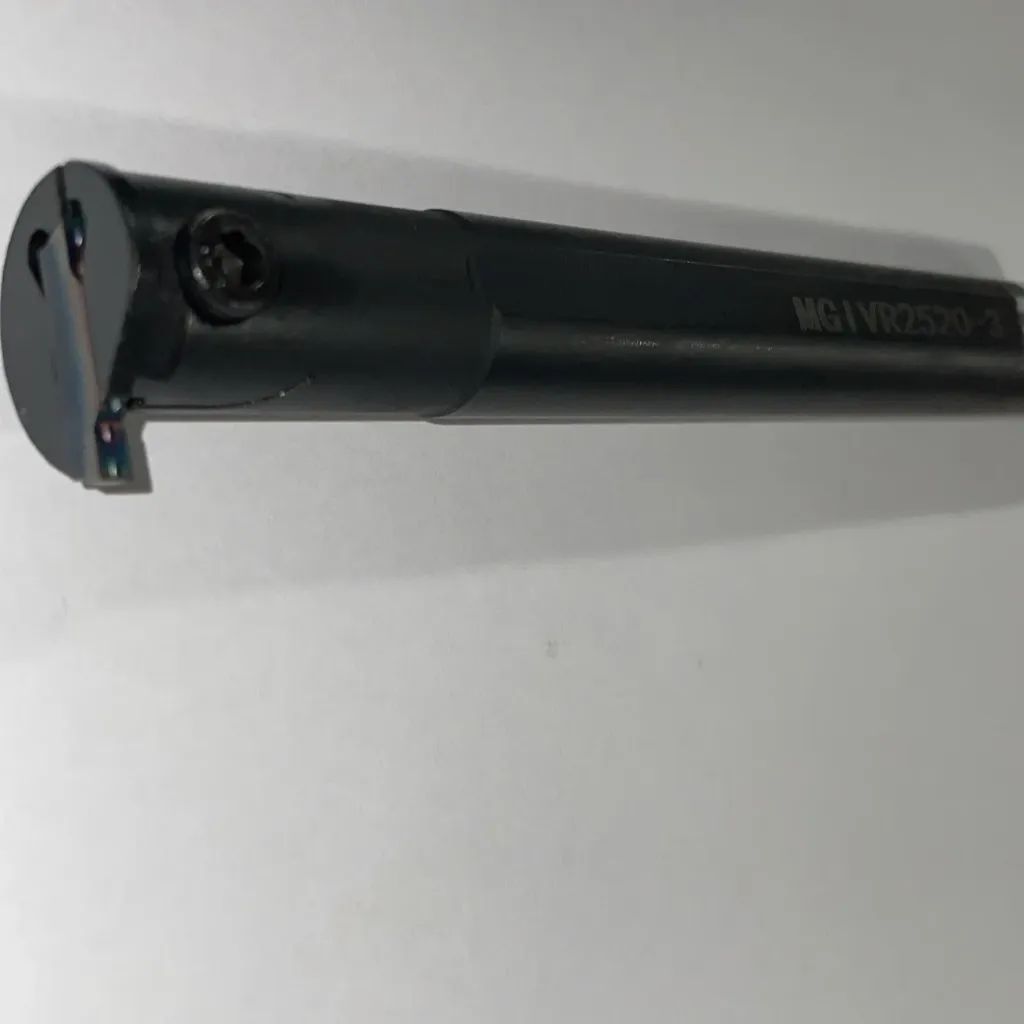

The MGIVR2520-3 is an internal grooving and turning tool holder (boring bar) used for precision internal machining on lathes and CNC machines.
Key Specifications and Features
- Function: Designed for internal grooving, boring, and profiling operations within a bore.
- Orientation: Right-hand turning tool (indicated by the "R" in the model designation).
- Shank Diameter: Features a 20mm diameter shank for mounting in a tool post.
- Groove Width: Specifically designed to accept 3mm wide inserts, allowing for 3mm grooves.
- Minimum Bore Diameter: Suitable for use in pre-bored holes with a minimum internal diameter of 25mm.
- Compatible Inserts: It is compatible with MGMN300 and MRMN300 carbide inserts, which must be purchased separately.
