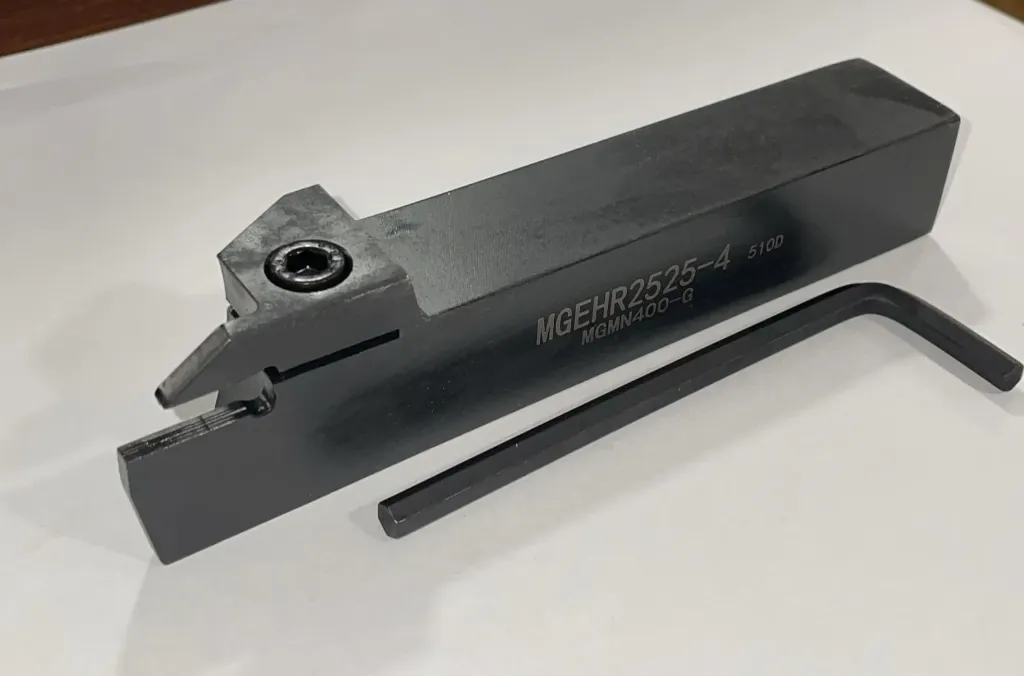

MGEHR MGEHR 2525K-4T20 durable external grooving and parting tool holder designed for lathe machines. It is widely used in metalworking and is compatible with standard MGMN400 carbide inserts
Key Features
- Function: Primarily used for external grooving, parting (cut-off), semi-finishing, and finishing operations on various materials including steel, stainless steel, cast iron, copper, and aluminum.
- Material and Durability: Constructed from high-quality alloy steel (often 40Cr steel), providing high grip strength, impact resistance, and a long service life.
Specifications:
- Model: MGEHR 2525K-4T20
- Shank Size: 25 mm x 25 mm square shank
- Overall Length: Approximately 100 mm (3.94 inches)
- Grooving Width: Accepts 4 mm wide inserts
- Cutting Direction: Right-hand orientation

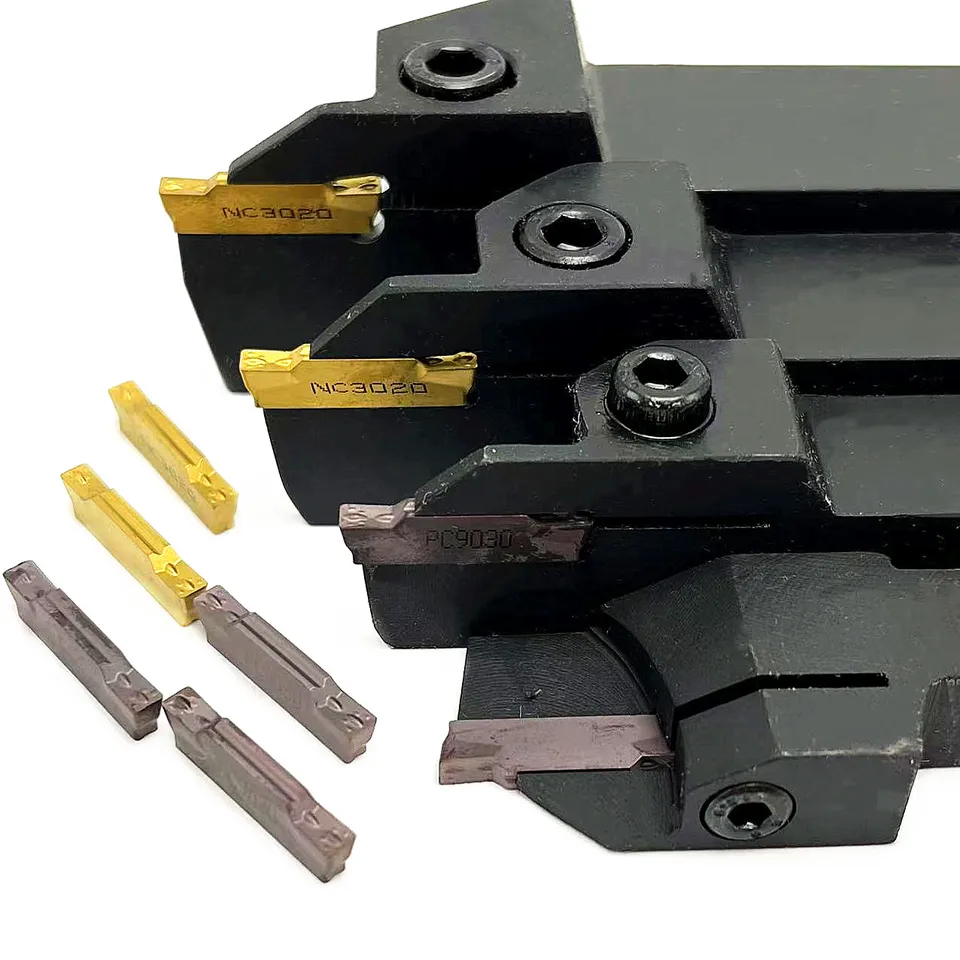

- Compatibility: Designed to accept MGMN400-G carbide inserts.
